Sensor Paver Finisher

Click to enlarge

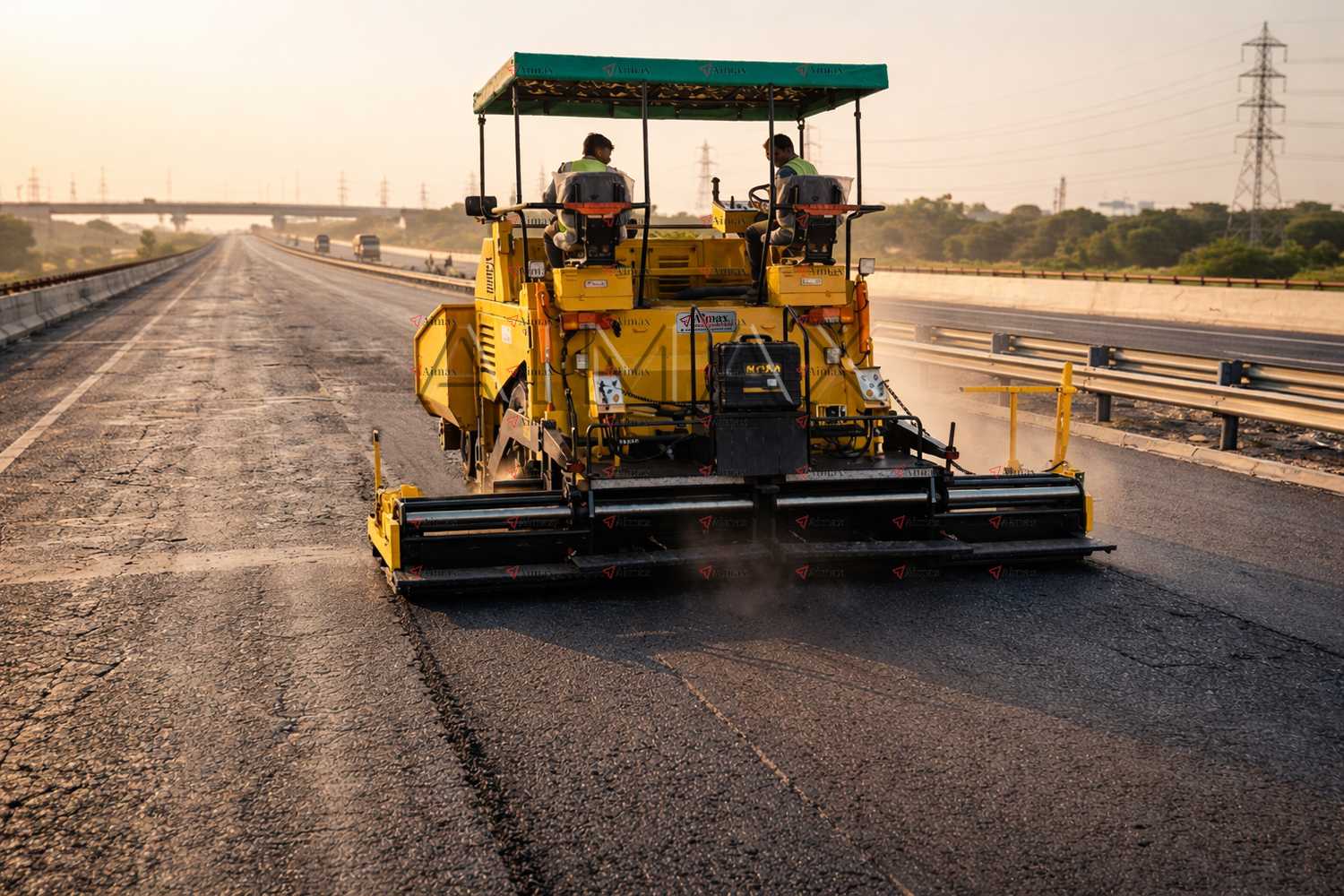

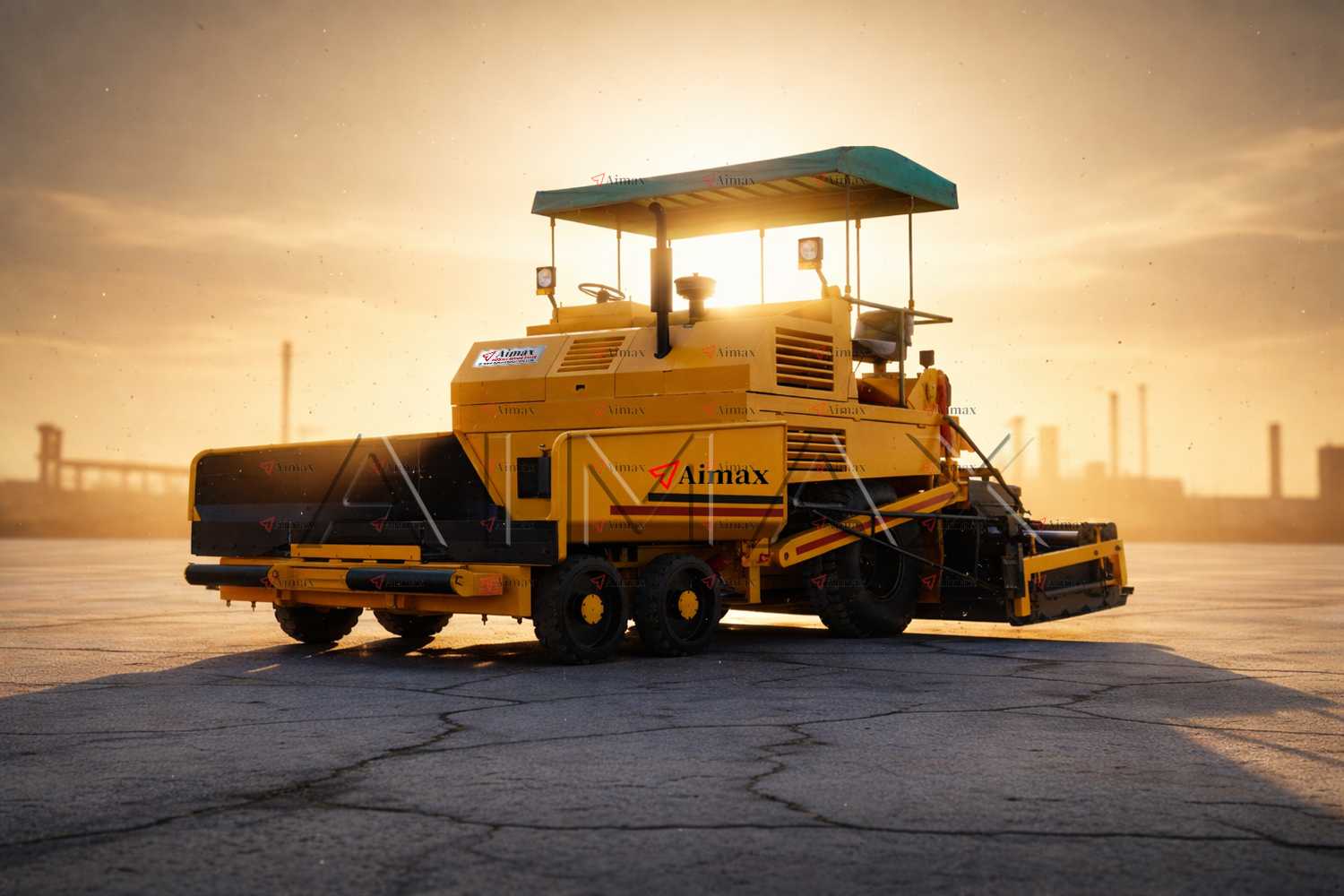

High-Precision Asphalt Hydrostatic Sensor Paver for Modern Road Projects

Aimax Sensor Asphalt Paver Machines are built for projects where precision, automation, and surface quality are critical. These machines are equipped with advanced grade and slope sensor systems, ensuring accurate thickness control and superior road finish.

Designed as a high-performance Asphalt Hydrostatic Sensor Paver, the ASP series combines hydrostatic drive technology with intelligent leveling systems to deliver consistent results across large-scale and high-specification projects.

Ideal for highways, government contracts, and premium road construction, these machines reduce manual dependency and improve overall paving efficiency.

Category: Asphalt Plant and Machinery

Description

The Aimax ASP Series Asphalt Paver Finisher is designed for high-accuracy paving applications. It uses sensor-based automation to maintain uniform thickness and slope throughout the paving process.

Material flows from the hopper through hydraulic conveyors to the auger system, which distributes it evenly across the screed. The hydrostatic drive ensures smooth movement, while the sensor system continuously monitors and adjusts the paving level.

This results in a high-quality, uniform road surface with minimal manual intervention, making it ideal for modern infrastructure projects.

Applications

National Highway Projects
Expressways
Smart City Roads
Large Infrastructure Projects
Airport Runways

Advantages

High precision with automatic leveling
Reduced dependency on operator skill
Better surface finish and durability
Faster and more efficient project execution
Suitable for large-scale projects

Available Models

Aimax ASP-450i Sensor Paver – 2.5 m to 4.5 m Screed
Aimax ASP-550i Sensor Paver – 2.5 m to 5.5 m Screed

Key Features

Advanced Asphalt Sensor Paver Machine with automatic leveling
Moba grade & slope control system for precision paving
Powerful Kirloskar 105 HP diesel engine
Smooth hydrostatic drive system (Danfoss make)
Hydraulically extendable screed with LPG heating
High-performance auger and conveyor system
Operator-friendly controls with better comfort

Specification

Parameter	ASP-450i	ASP-550i
Application	Asphalt + Wet Mix	Asphalt + Wet Mix
Engine	Kirloskar BS-III Diesel	Kirloskar BS-III Diesel
Power Output	105 HP	105 HP
Transmission	Hydrostatic (Danfoss)	Hydrostatic (Danfoss)
Screed Width	2.5 – 4.5 m	2.5 – 5.5 m
Paving Thickness	10 – 280 mm	10 – 280 mm
Working Speed	0 – 40 m/min	0 – 40 m/min
Travel Speed	Up to 16.5 km/hr	Up to 16.5 km/hr
Hopper Capacity	4.5 Cu. m	4.5 Cu. m
Conveyor System	Hydraulic Dual Conveyor	Hydraulic Dual Conveyor
Auger Material	Ni-Hard / High Chrome	Ni-Hard / High Chrome
Compaction	Hydraulic Eccentric	Hydraulic Eccentric
Screed Heating	LPG Heating	LPG Heating
Sensor System	Moba Grade & Slope	Moba Grade & Slope
Steering	Hydrostatic	Hydrostatic

Standard Config

Kirloskar diesel engine
Hydrostatic transmission system
Moba sensor system
Heavy-duty hopper (4.5 Cu.m)
Hydraulic conveyors and augers
Vibratory screed with heating
Operator control panel and seats
Tool kit and accessories

Features

1. Sensor-Based Automatic Leveling System

The machine uses advanced sensors to automatically control screed height and road level during paving. This ensures uniform thickness and eliminates uneven surfaces, even over long stretches.

2. Hydrostatic Drive Technology

Equipped with a hydrostatic drive system, the paver delivers smooth, jerk-free movement. This directly improves road finish quality and allows better control during slow-speed paving operations.

3.Sliding Operator Control with Dual Operation Seat

The machine is equipped with a sliding operator control panel that can be moved from right to left or left to right, along with dual operator seating. This allows the operator to maintain clear visibility of the paving edge on either side, ensuring better control, accuracy, and safety during operation—especially in varying site conditions.

4. High Precision Screed Control

The screed system is designed for accurate leveling and consistent compaction. It helps achieve a superior surface finish with proper density, which is essential for highways and premium road projects.

5. Uniform Material Distribution

A well-balanced conveyor and auger system ensures even spreading of asphalt across the full width. This reduces segregation and avoids material accumulation or gaps.

6. Dual Application Capability (Asphalt + Wet Mix)

The ASP series can be used for both asphalt layers and wet mix base work. This flexibility allows contractors to utilize the same machine across multiple stages of road construction.

7. Reduced Operator Dependency

With sensor automation handling level control, the dependency on highly skilled operators is reduced. This ensures consistent results even with varying workforce experience.

8. Consistent Output on Long Stretches

The sensor system maintains uniform paving thickness across long distances without variation. This is especially useful for highways, expressways, and airport runway projects.

9. Improved Riding Quality of Roads

Accurate leveling and smooth paving result in better road riding comfort. This enhances the overall quality and lifespan of the finished road surface.

10. Efficient and Controlled Paving Operation

The combination of hydrostatic drive and sensor control allows precise speed and material flow management. This improves efficiency, reduces rework, and optimizes fuel and material usage.

FAQ

`What is a Sensor Paver Machine and how is it different from a standard asphalt paver?`

 A Sensor Paver Machine uses an automatic leveling system to control screed height and paving thickness in real time. Unlike conventional pavers that rely on manual adjustment, sensor pavers deliver consistent surface finish, higher accuracy, and reduced human error, especially in long road stretches.

`What type of sensor system is used in the Aimax ASP series?`

 The Aimax ASP series is equipped with advanced MOBA sensor systems, known globally for precision road construction. These include ultrasonic sensors, mechanical ski sensors, and slope control systems that continuously monitor and adjust paving levels.

`What are the advantages of using MOBA sensors in asphalt paving?`

 MOBA sensors provide highly accurate leveling control, ensuring uniform thickness and smooth road finish. They improve consistency over long distances, reduce rework, and help achieve international quality standards in highway and infrastructure projects.

`What is the benefit of hydrostatic drive in this machine?`

 The hydrostatic drive system ensures smooth, jerk-free movement of the paver. This allows precise speed control during paving, resulting in better surface finish and improved operational efficiency.

`What is the benefit of a sliding operator seat in an asphalt paver?`

 The sliding operator seat allows the operator to shift position to either side of the machine for better visibility of the paving edge. This improves alignment accuracy, enhances safety, and ensures consistent paving quality, particularly when working on curves, edges, or confined road sections.

`Can the ASP Sensor Paver be used for both asphalt and wet mix applications?`

 Yes, the ASP series is designed for dual application. It can be used for wet mix macadam (WMM) base layers as well as asphalt top layers, making it a versatile solution for contractors.

`What is the maximum paving width and thickness available?`

 The ASP-450i offers a paving width of up to 4.5 meters, while the ASP-550i extends up to 5.5 meters. Both models support paving thickness ranging from approximately 10 mm to 200 mm.

`How does the sensor system improve road quality and riding comfort?`

 The sensor system continuously maintains level accuracy and thickness uniformity. This results in smoother roads, better riding comfort, reduced undulations, and improved durability of the pavement.

`Is this machine suitable for highway and premium infrastructure projects?`

 Yes, the ASP series with MOBA sensor technology is ideal for national highways, expressways, airport runways, and smart city projects where precision and finish quality are critical.

`Does automation reduce dependency on skilled operators?`

 Yes, the automated sensor system significantly reduces reliance on operator skill for leveling. This ensures consistent output even when operator experience varies.

`What is the production capacity of the ASP series?`

 The machine typically offers a laying capacity of around 100–140 TPH, depending on paving width, material type, and site conditions.

`What maintenance is required for MOBA sensor systems?`

 MOBA sensors are designed for durability and require minimal maintenance. Regular cleaning, calibration checks, and proper handling ensure long-term accuracy and performance.

`What should buyers consider before purchasing a Sensor Paver with MOBA system?`

 Buyers should evaluate project type, required paving width, sensor configuration, after-sales support, and long-term usage. Investing in a MOBA-equipped paver ensures better output quality and higher return on investment.
