Chips Spreader with Bitumen Sprayer
Aimax Bitumen Sprayer cum Chip Spreader – Global Series

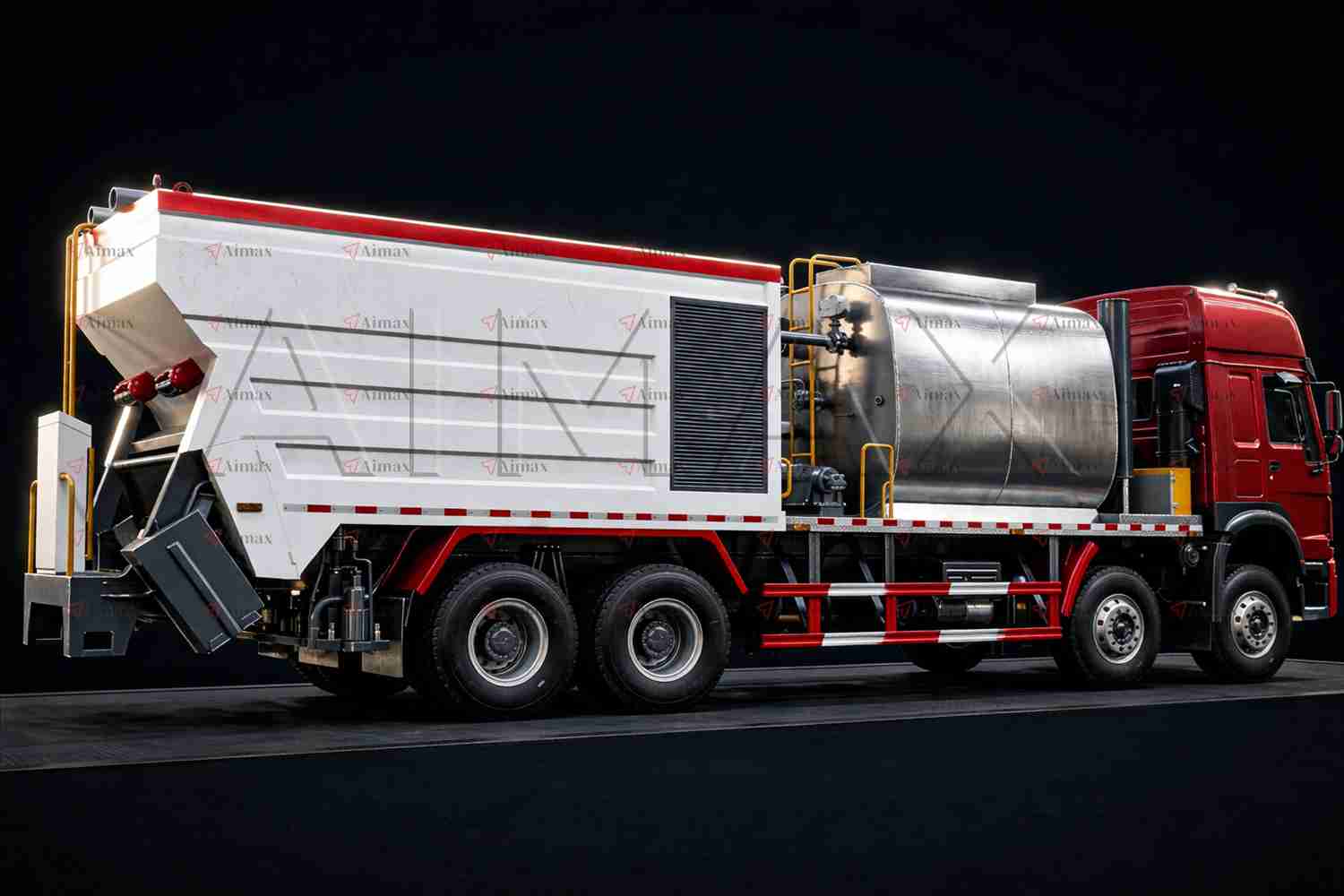

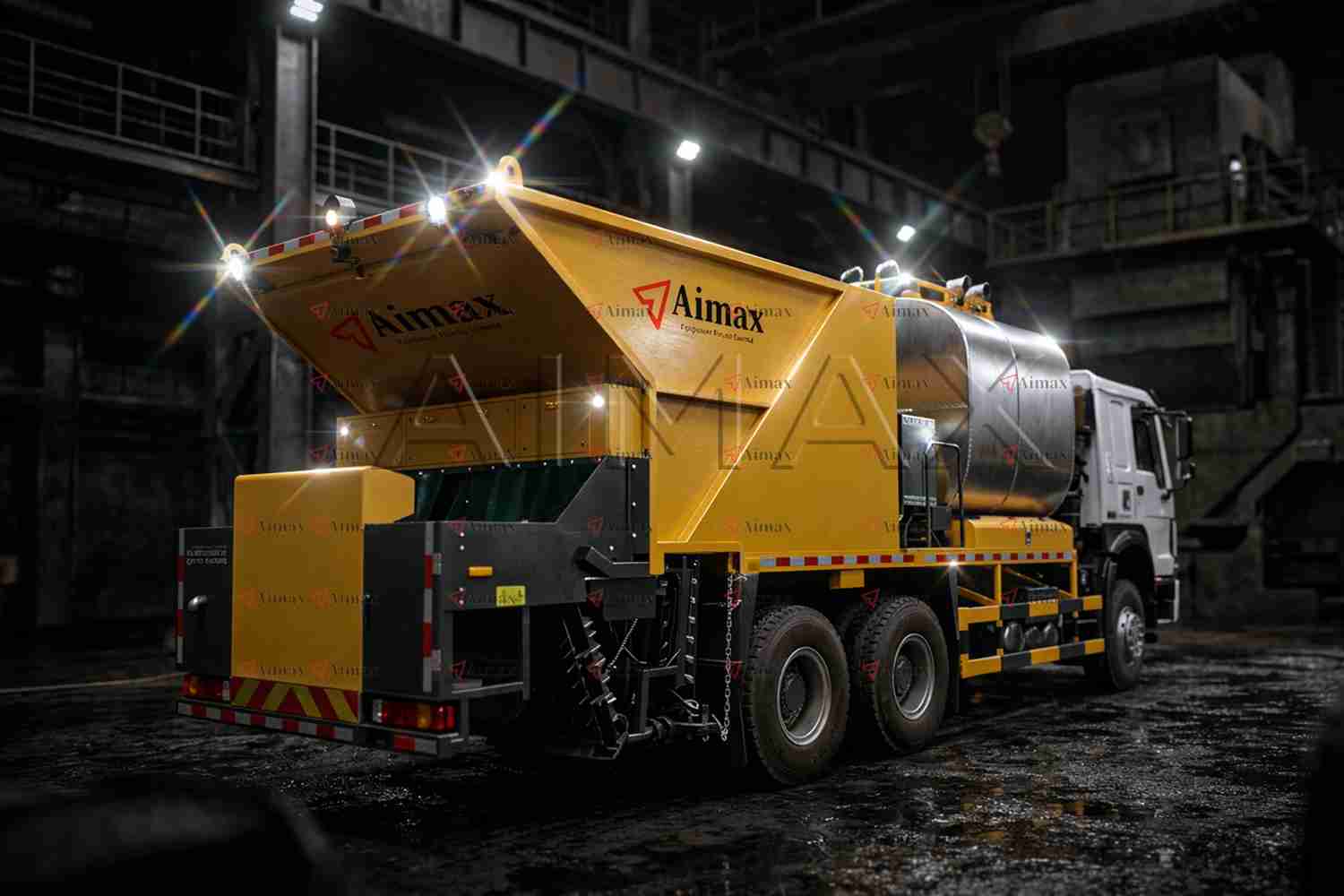

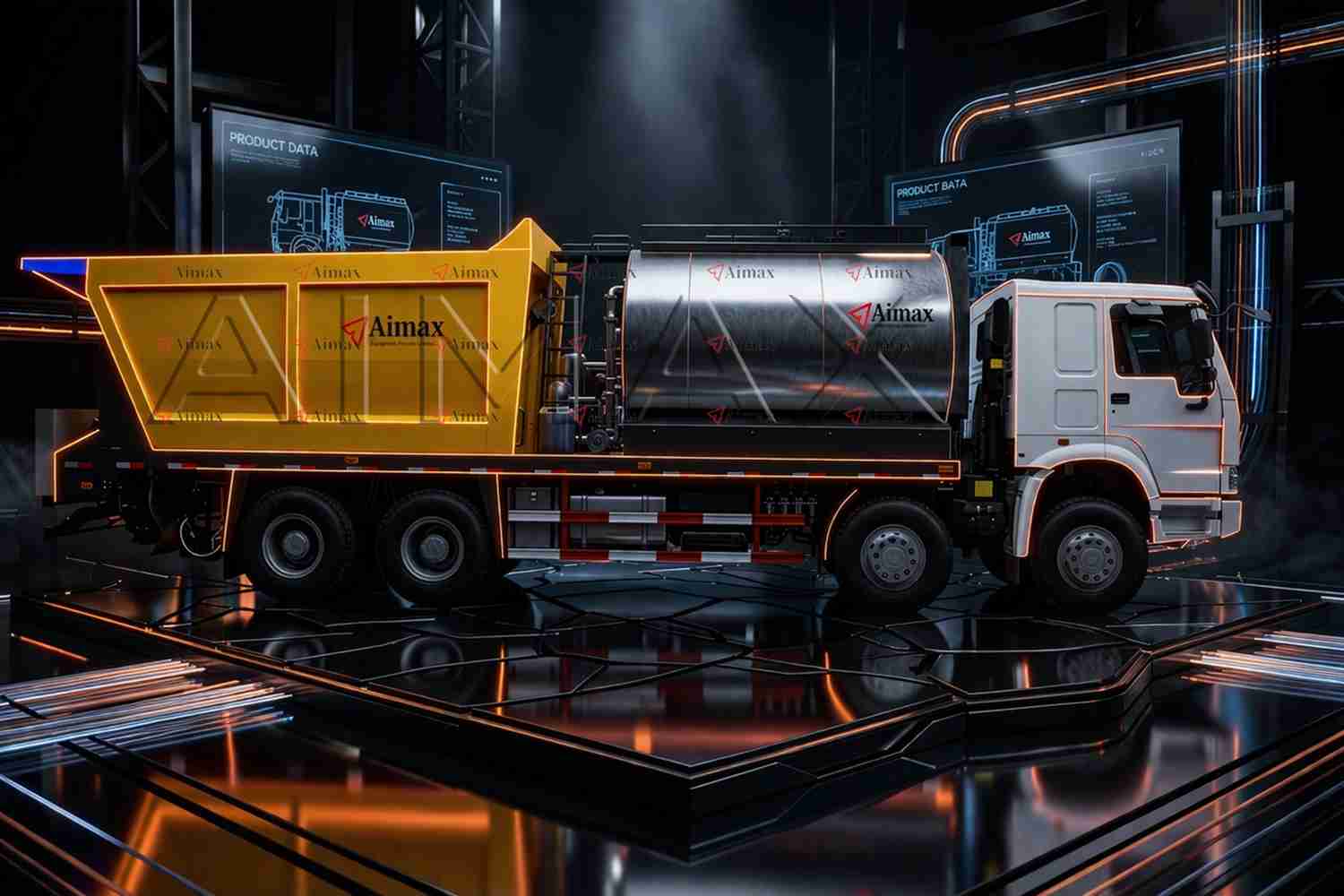

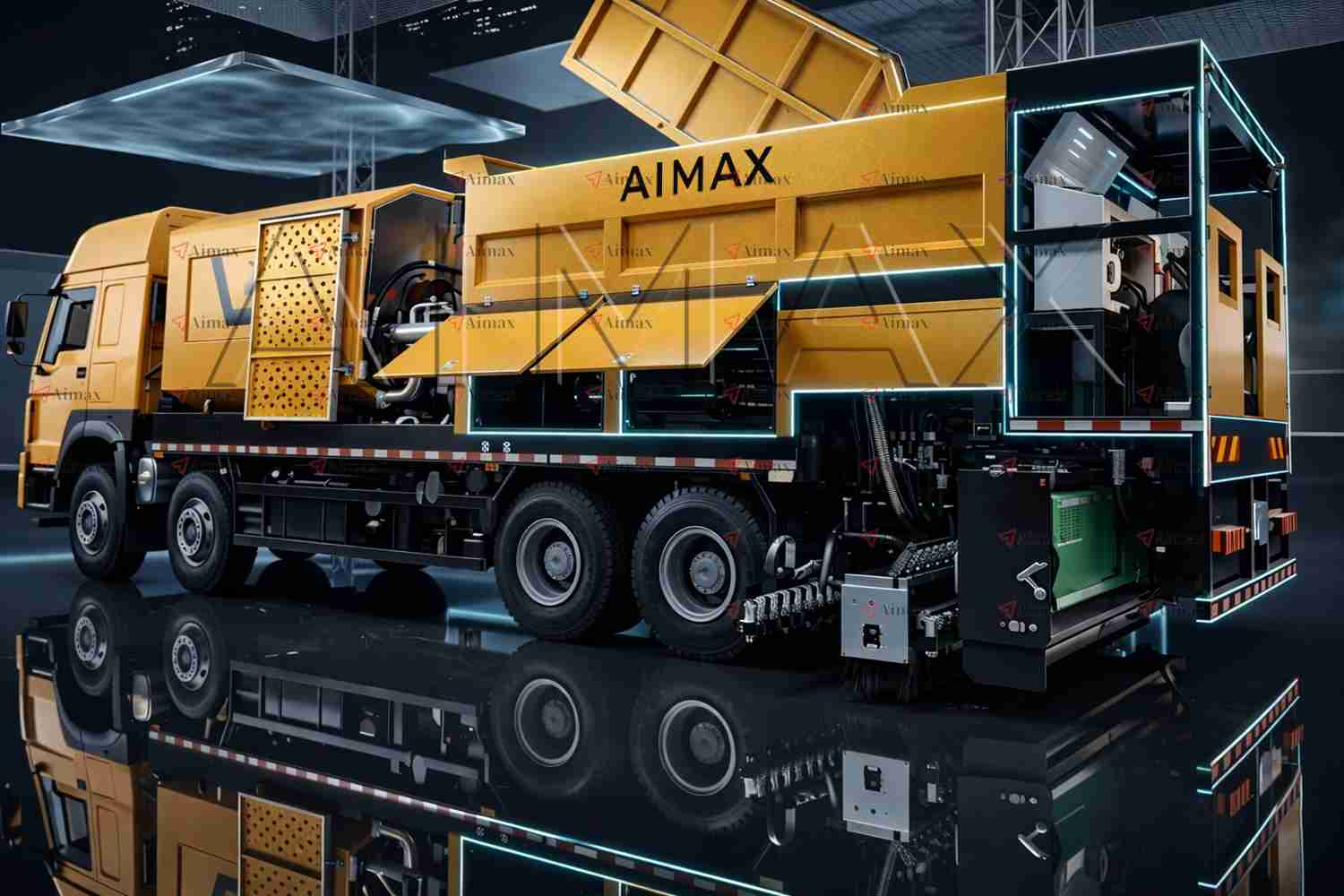

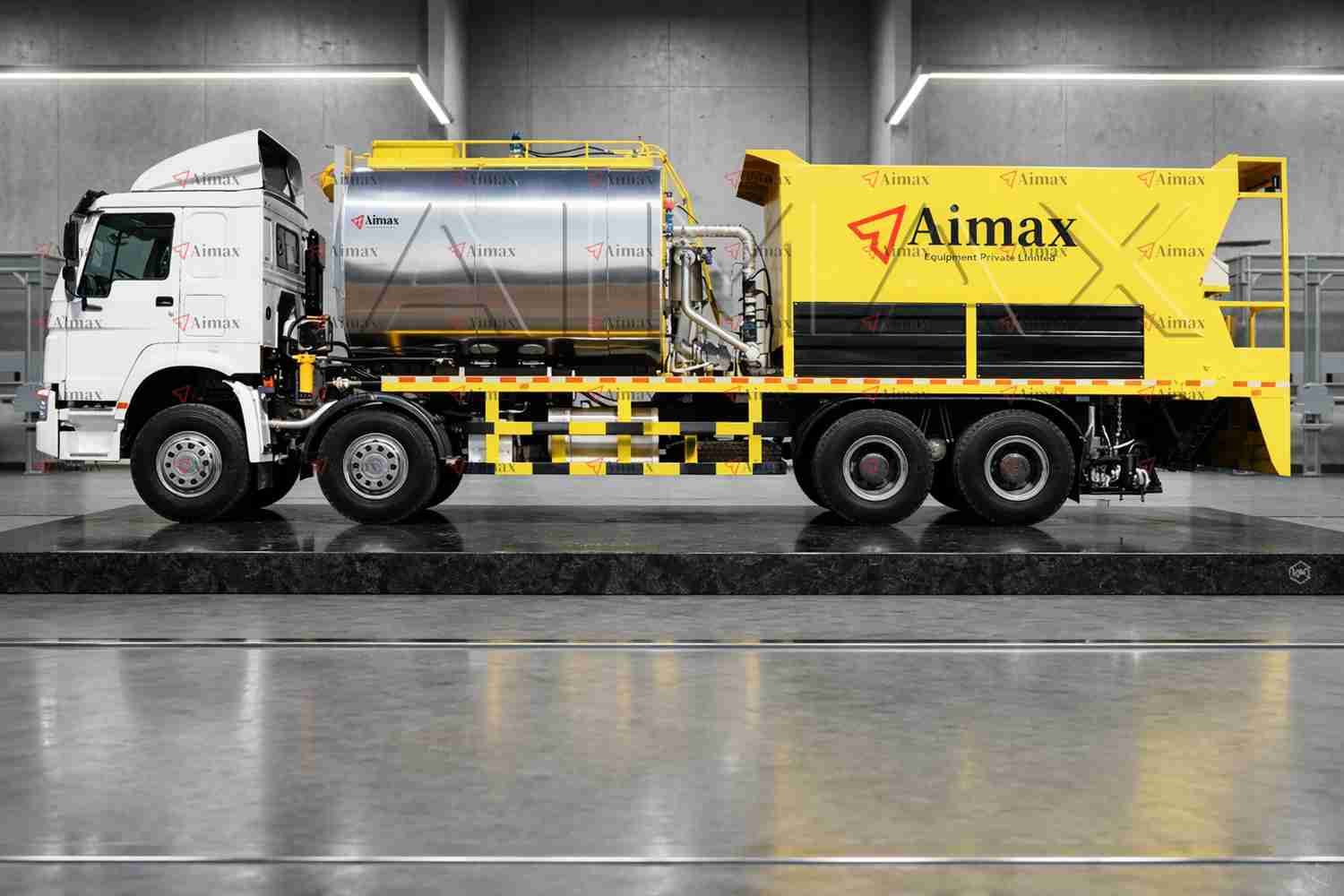

Aimax Bitumen Sprayer cum Chip Spreader is a high-performance, truck-mounted solution designed for synchronized spraying of bitumen and uniform spreading of aggregates in a single pass.
It ensures superior bonding, faster road construction, and reduced operational cost for surface dressing and chip seal applications.
Engineered for global projects, it delivers precision, efficiency, and durability in every road condition.
Description
Aimax Global Series Bitumen Sprayer cum Chip Spreader is specially developed for modern road construction where speed, accuracy, and durability are critical. This machine performs synchronized spraying of bitumen and spreading of aggregates, ensuring immediate bonding and high-quality surface dressing. This technology significantly improves pavement life and reduces material wastage.
The machine is fully truck-mounted, allowing easy transportation between job sites and quick setup. With integrated hydraulic systems, precision spray bars, and controlled aggregate feeding mechanisms, it delivers uniform application across the entire road width. The automated control system adjusts spray rate according to vehicle speed, ensuring consistent results even at varying working conditions.
Designed for global applications, Aimax machines are built to handle different bitumen types such as hot bitumen, emulsified bitumen, and modified asphalt. The insulated tank with efficient heating ensures temperature stability, while the aggregate hopper system guarantees continuous and controlled material flow, making it ideal for highway construction, chip seal, and preventive maintenance works.
Key Highlights
- Synchronous bitumen spraying & chip spreading in one operation
- Fully truck-mounted design for mobility and fast deployment
- Uniform distribution ensures strong road bonding
- Advanced heating system for consistent bitumen temperature
- Hydraulic & automatic control system for precision work
- Suitable for highways, rural roads, and maintenance projects
Specification
Model AM-CS-6000 AM-CS-8000 AM-CS-10000 AM-CS-12000
Mounting Type Truck Mounted Truck Mounted Truck Mounted Truck Mounted
Bitumen Tank Capacity 6000 Litres 8000 Litres 10000 Litres 12000 Litres
Aggregate Hopper Capacity 8 m³ 10 m³ 12 m³ 14 m³
Spray Width 2500 – 3800 mm 3000 – 4200 mm 3000 – 4200 mm 3500 – 4500 mm
Bitumen Spray Rate 0.2 – 3.0 kg/m² 0.2 – 3.0 kg/m² 0.2 – 3.0 kg/m² 0.2 – 3.0 kg/m²
Aggregate Size 3 – 30 mm 3 – 30 mm 3 – 30 mm 3 – 30 mm
Heating System Diesel Burner / Thermic Oil Diesel Burner / Thermic Oil Diesel Burner / Thermic Oil Diesel Burner / Thermic Oil
Control System Automatic + Manual Automatic + Manual Automatic + Manual Automatic + Manual
Working Speed 3 – 6 km/hr 3 – 6 km/hr 3 – 6 km/hr 3 – 6 km/hr
Standard Config
- Bitumen storage tank with insulation
- Diesel burner heating system
- Precision spray bar with nozzles
- Aggregate hopper with feeding conveyor
- Hydraulic pump & drive system
- Control panel (automatic + manual mode)
- Rear operator platform
- Air compressor & cleaning system
- Safety lights & indicators
- Tool kit and standard accessories
Features
- Synchronous Operation System
Bitumen spraying and chip spreading happen simultaneously, ensuring immediate bonding.
This improves adhesion and increases road durability significantly.
- Advanced Spray Bar Technology
Equipped with precision nozzles for uniform bitumen distribution.
Each nozzle can be individually controlled for accurate coverage.
- High Capacity Aggregate Hopper
Large hopper ensures uninterrupted operation during long stretches.
Reduces downtime and increases project productivity.
- Intelligent Control System
Automated system adjusts spray rate based on vehicle speed.
Ensures consistent application and minimizes operator dependency.
- Efficient Heating System
Diesel burner with thermic oil ensures quick and uniform heating.
Maintains optimal bitumen viscosity during operation.
- Hydraulic Drive Mechanism
Smooth and reliable hydraulic system for all major functions.
Provides better control and reduces maintenance issues.
- Uniform Chip Distribution Mechanism
Special feeding roller and spreading system ensure even aggregate layer.
Improves skid resistance and surface quality.
- Operator-Friendly Design
Centralized control panel with easy operation from cabin or rear platform.
Reduces manpower requirement and enhances safety.
- Global Application Design
Built to handle different climates and project conditions worldwide.
Suitable for highways, rural roads, airports, and maintenance works.
FAQ
It is used for chip seal, surface dressing, and road maintenance projects. The machine supports hot bitumen, emulsified bitumen, and modified asphalt. It allows immediate bonding of bitumen and aggregates. Yes, it comes with both automatic and manual control systems. Spray width ranges from 2.5 meters to 4.5 meters depending on the model. The insulated tank with diesel burner heating maintains consistent temperature. Yes, it is designed to be mounted on standard heavy-duty truck chassis. The machine operates efficiently at 3–6 km/hr. The machine is designed for low maintenance with accessible components. Basic training is recommended for efficient operation. Aimax machines offer durability, precision, and global-standard performance. What are the main applications of this machine?
Suitable for highways, rural roads, and preventive maintenance works. What types of bitumen can be used?
This makes it versatile for different project requirements. What is the advantage of synchronous operation?
This improves road strength and reduces material loss. Is the machine fully automatic?
Operators can choose based on project requirements. What is the typical spray width?
It can be adjusted as per road width. How is temperature maintained in the tank?
This ensures proper spraying viscosity. Can the machine be mounted on any truck?
Customization is available based on client requirements. What is the working speed of the machine?
This ensures accurate and uniform application. How is maintenance handled?
Regular cleaning and inspection ensure long service life. Is operator training required?
The control system is user-friendly and easy to learn. Why choose Aimax Global Series?
They are designed for long-term reliability and cost-effective operation.
