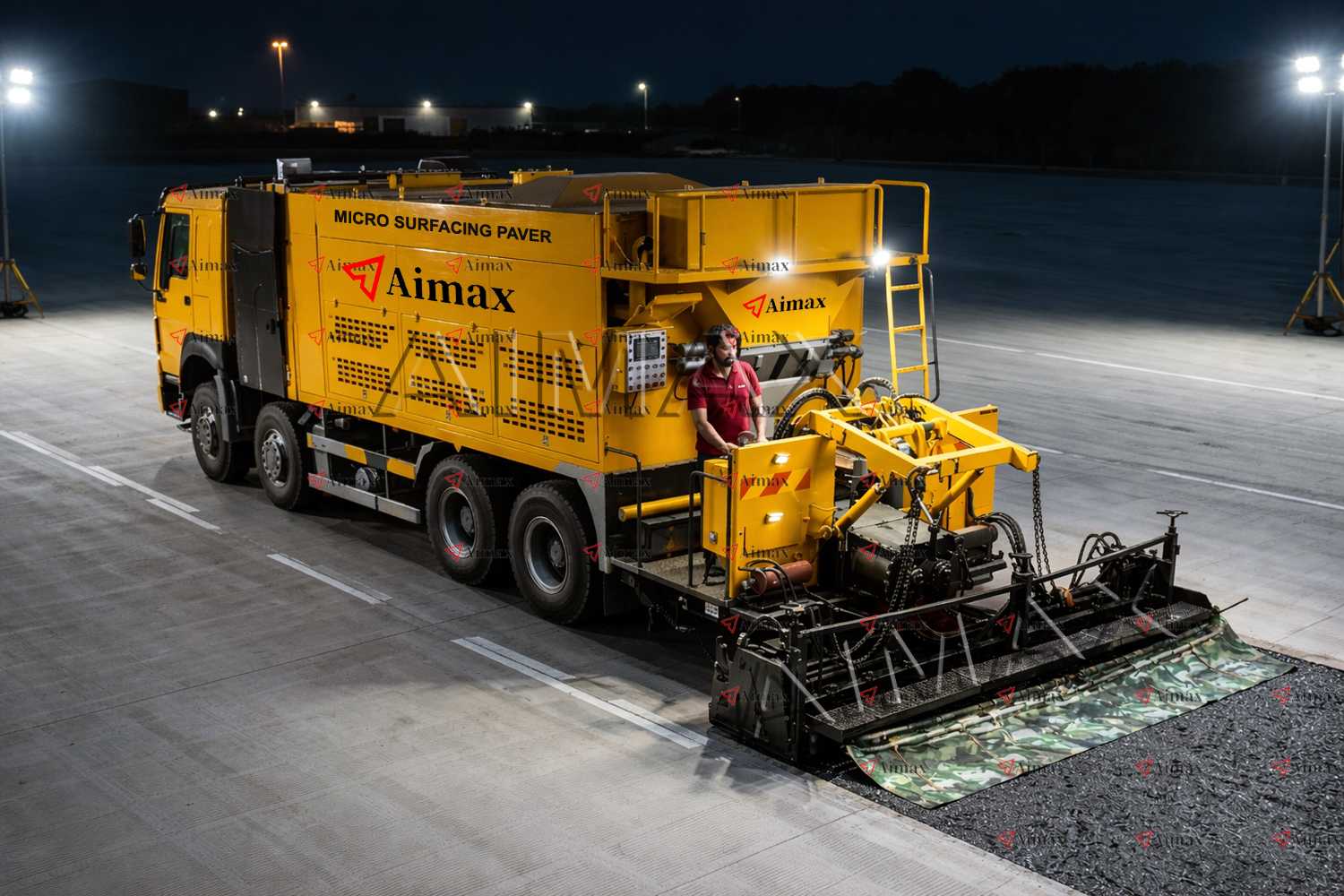

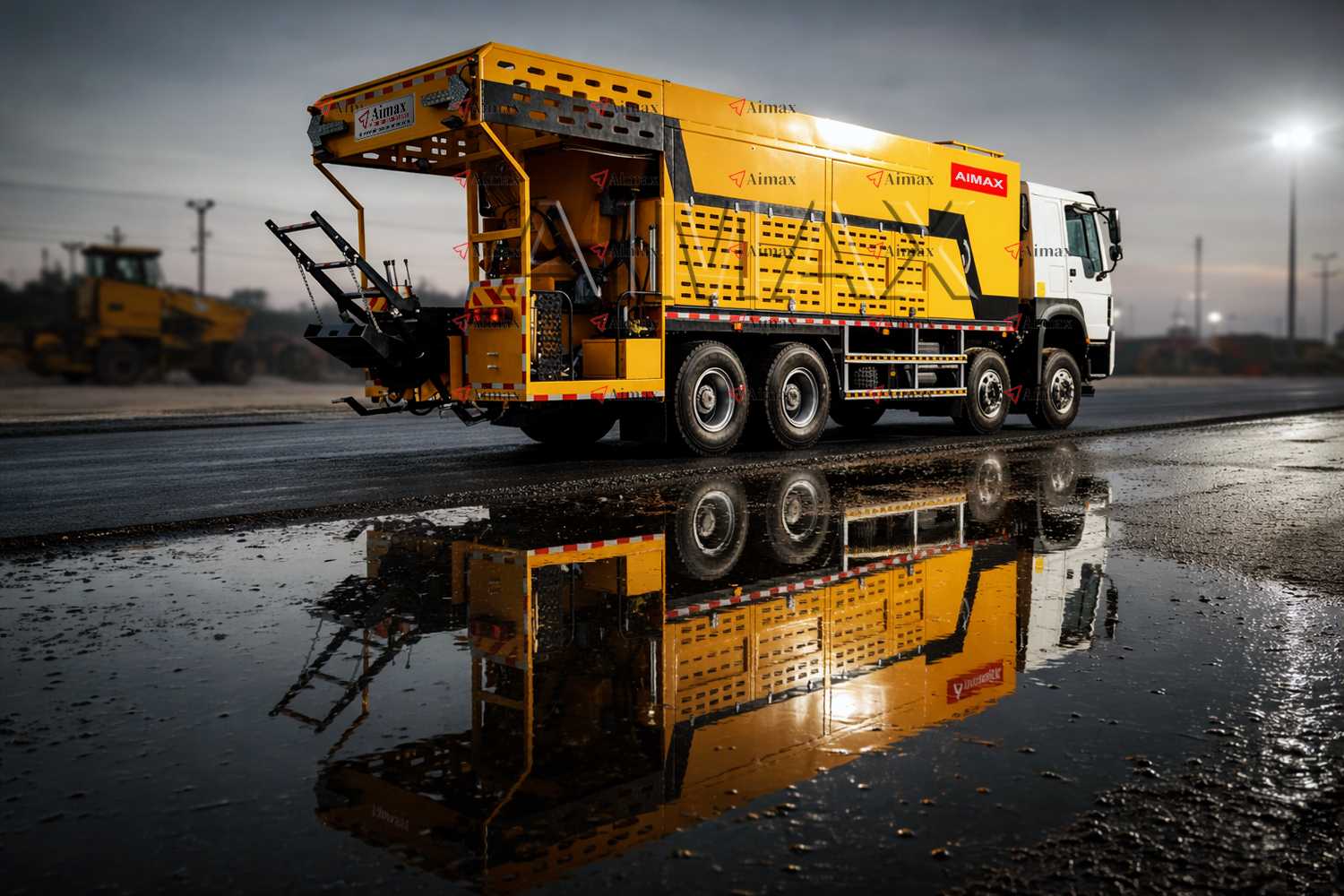

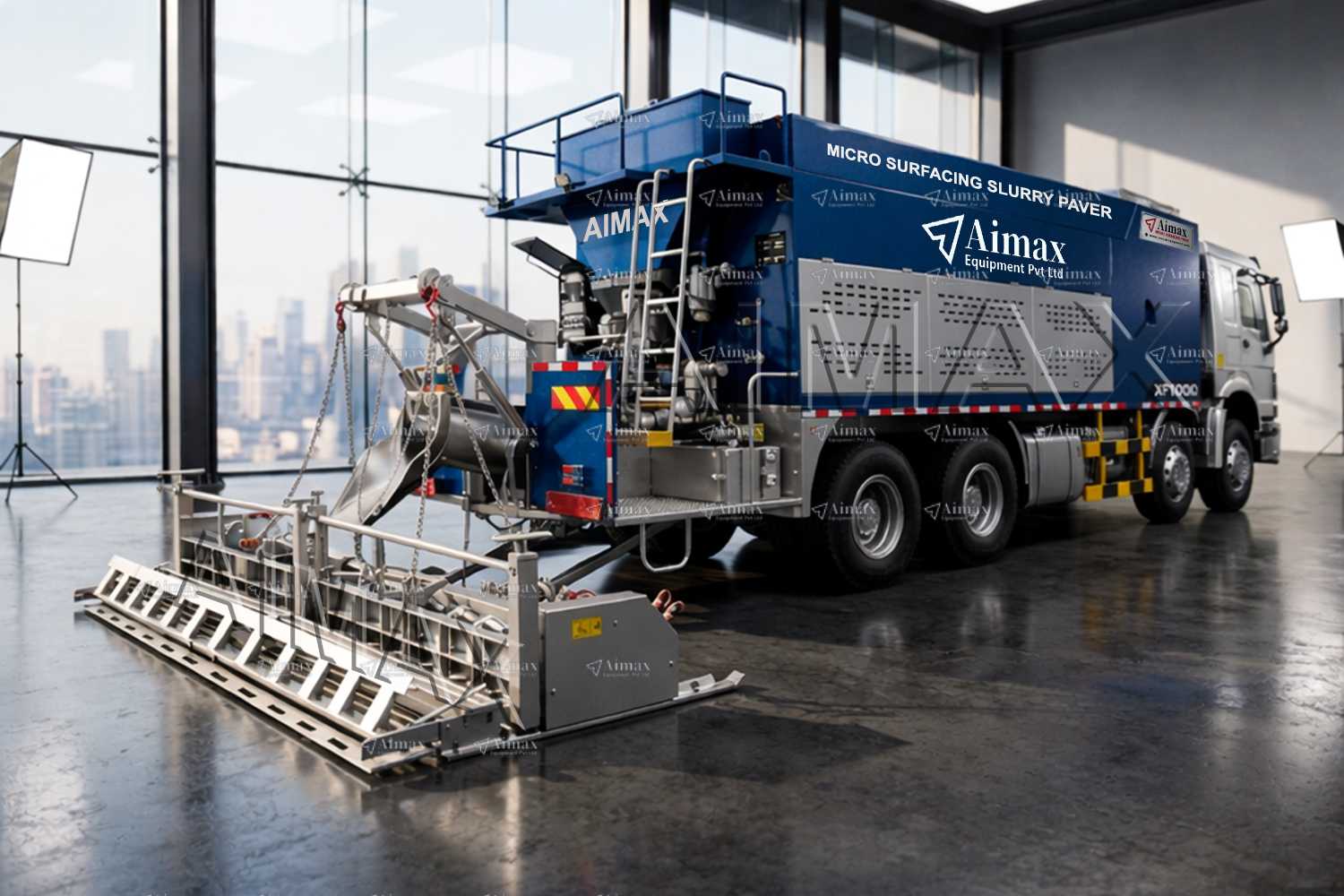

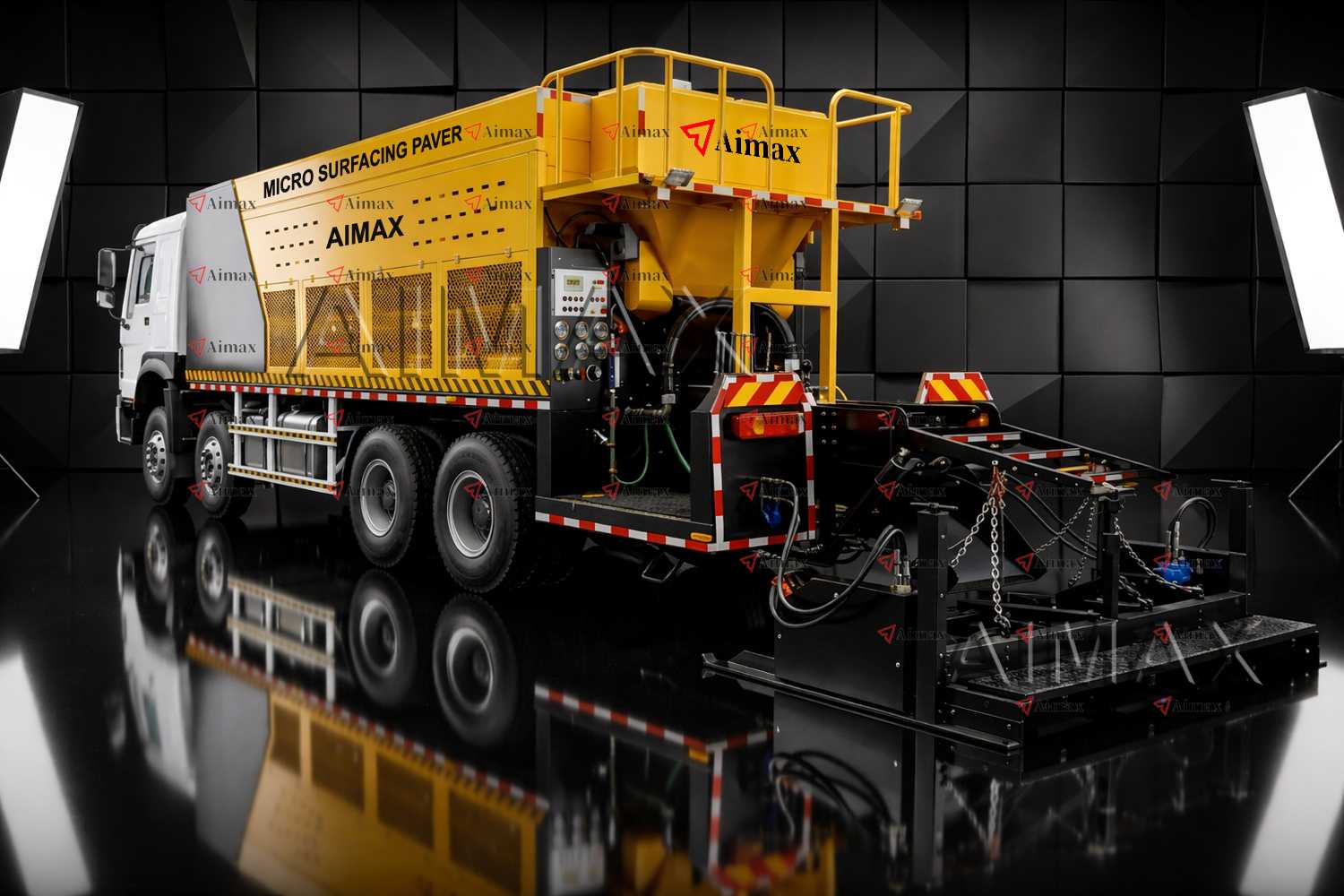

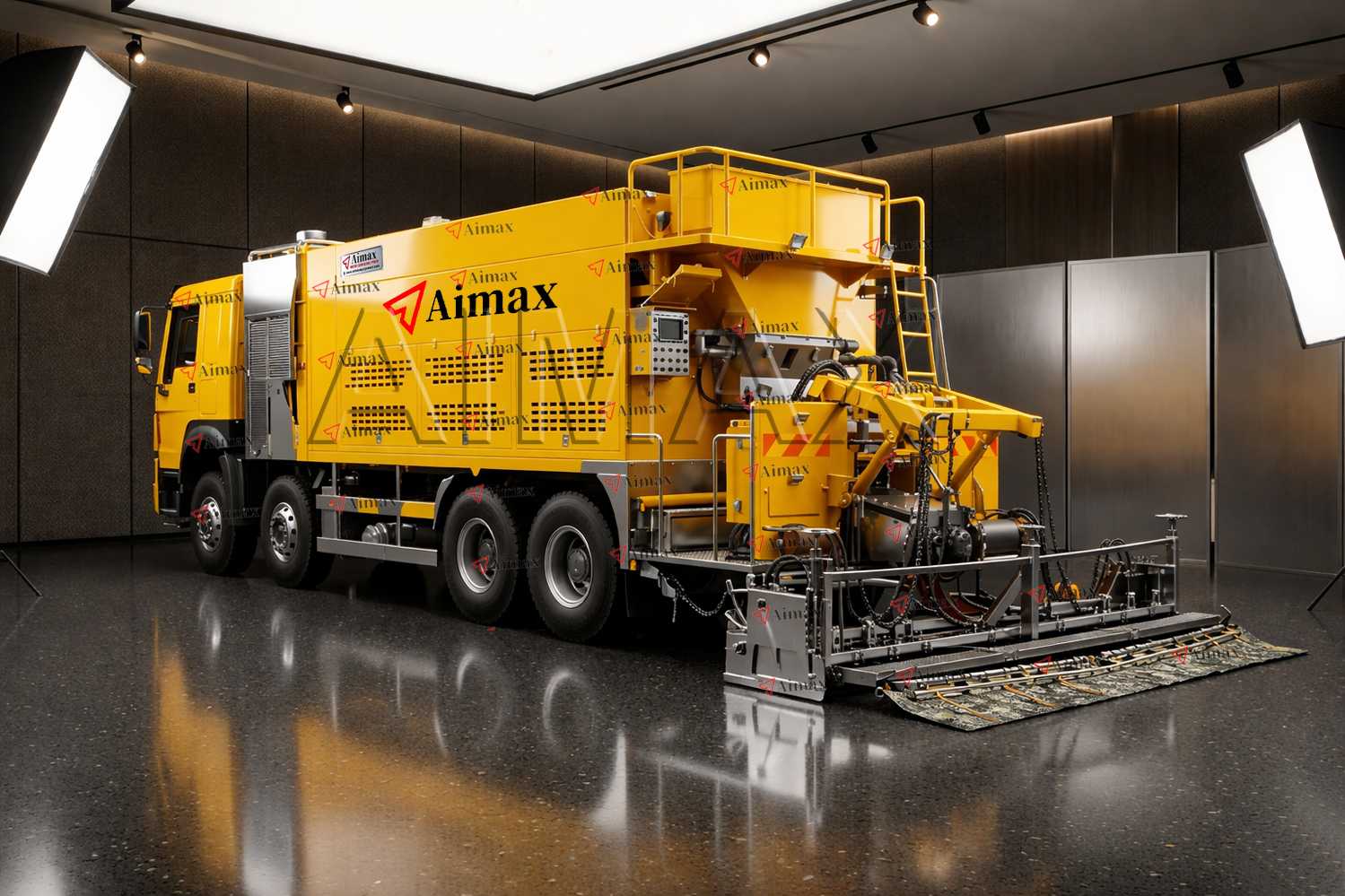

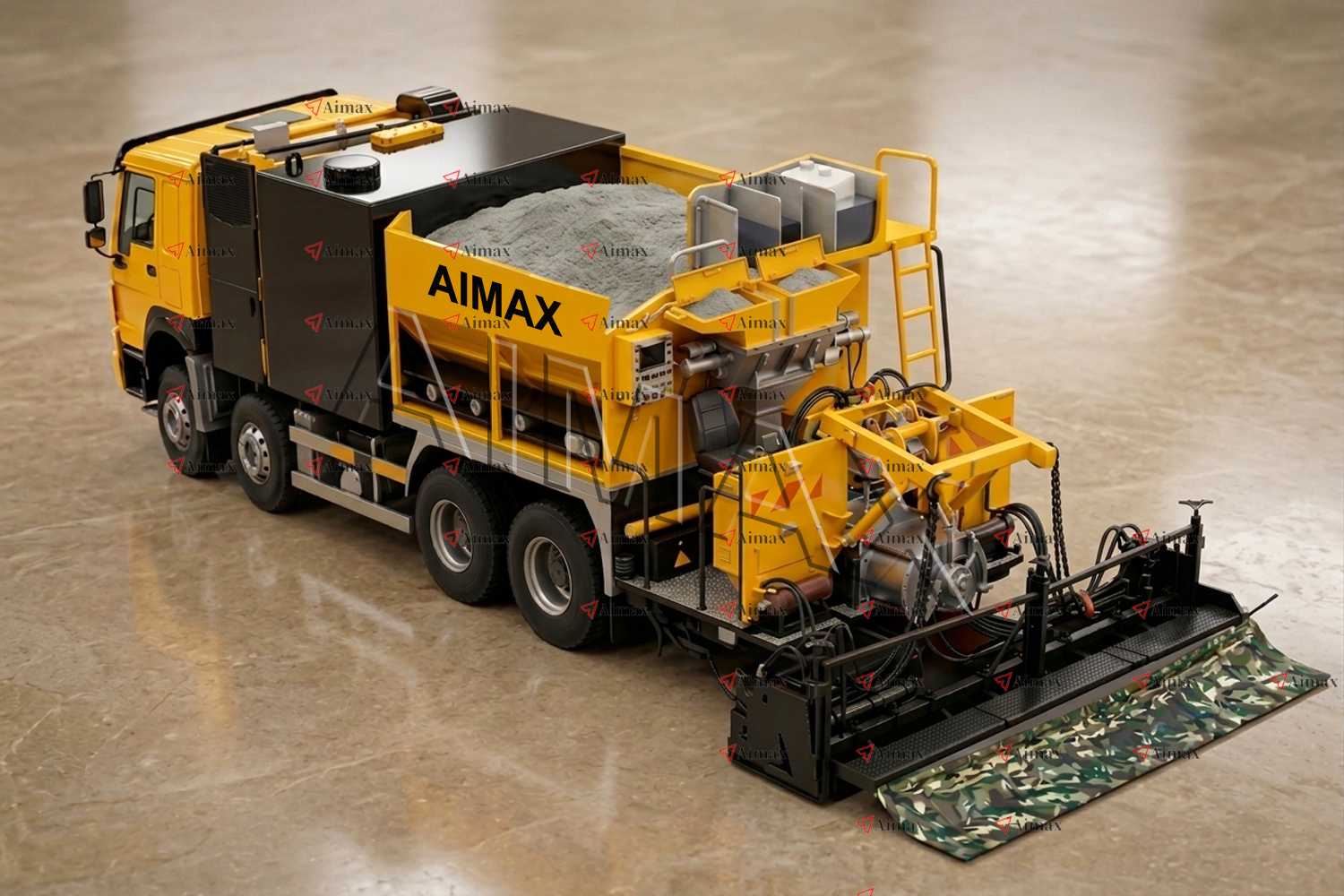

Micro Surfacing Slurry Paver
The Aimax Micro Surfacing Slurry Paver Machine is designed for fast, efficient, and cost-effective road maintenance. Built for contractors and infrastructure companies, it delivers consistent micro surfacing application with high precision. Whether you are working on highways, city roads, or preventive maintenance projects, this machine ensures durable surface treatment with minimal downtime.
With multiple models ranging from 5 m³ to 12 m³ capacity, Aimax offers the right solution for both urban and large-scale road projects.
Description
The Micro Surfacing Slurry Paver is a specialized road maintenance machine used for applying a thin layer of polymer-modified bitumen emulsion mixed with fine aggregates, cement, and water.
How It Works

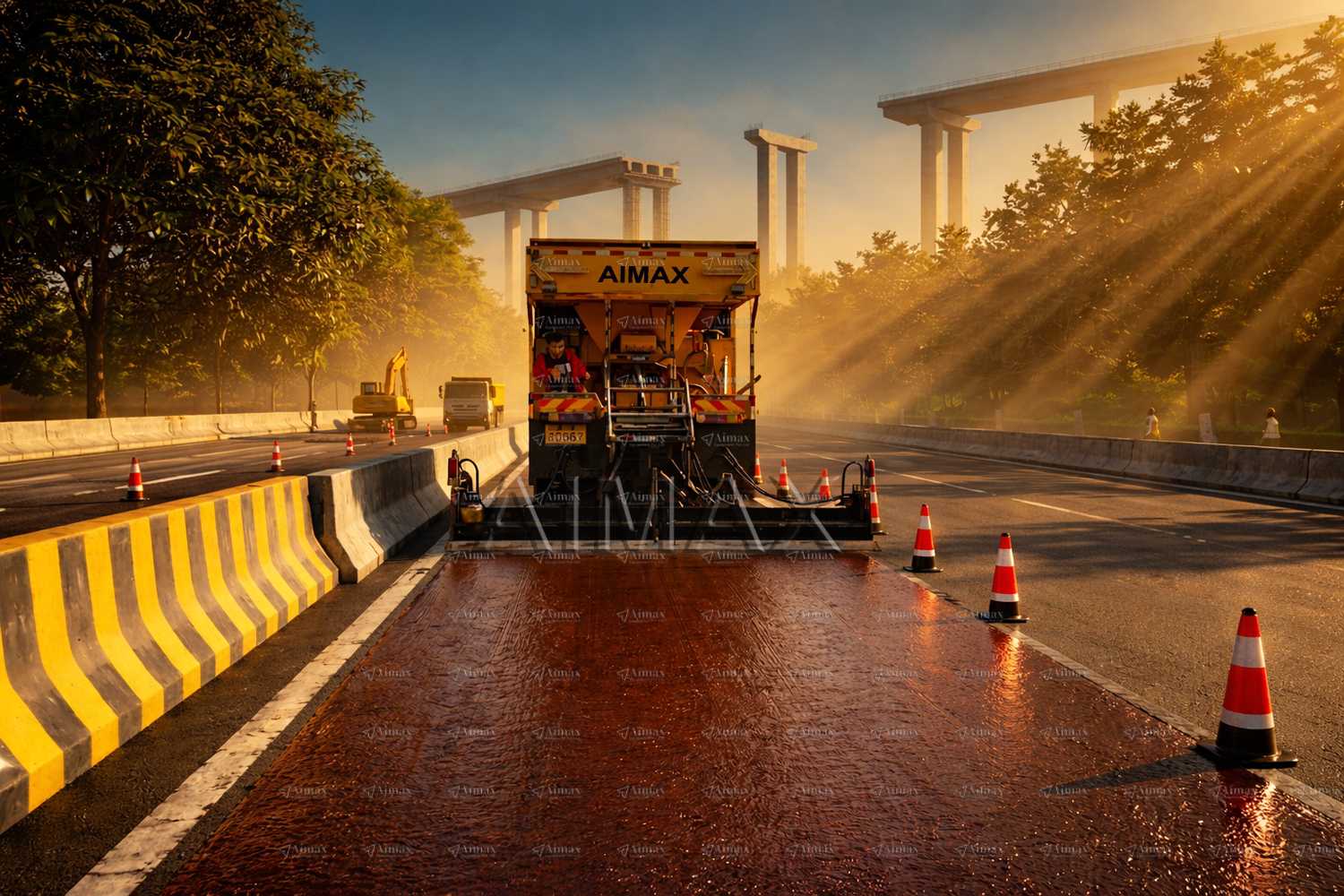

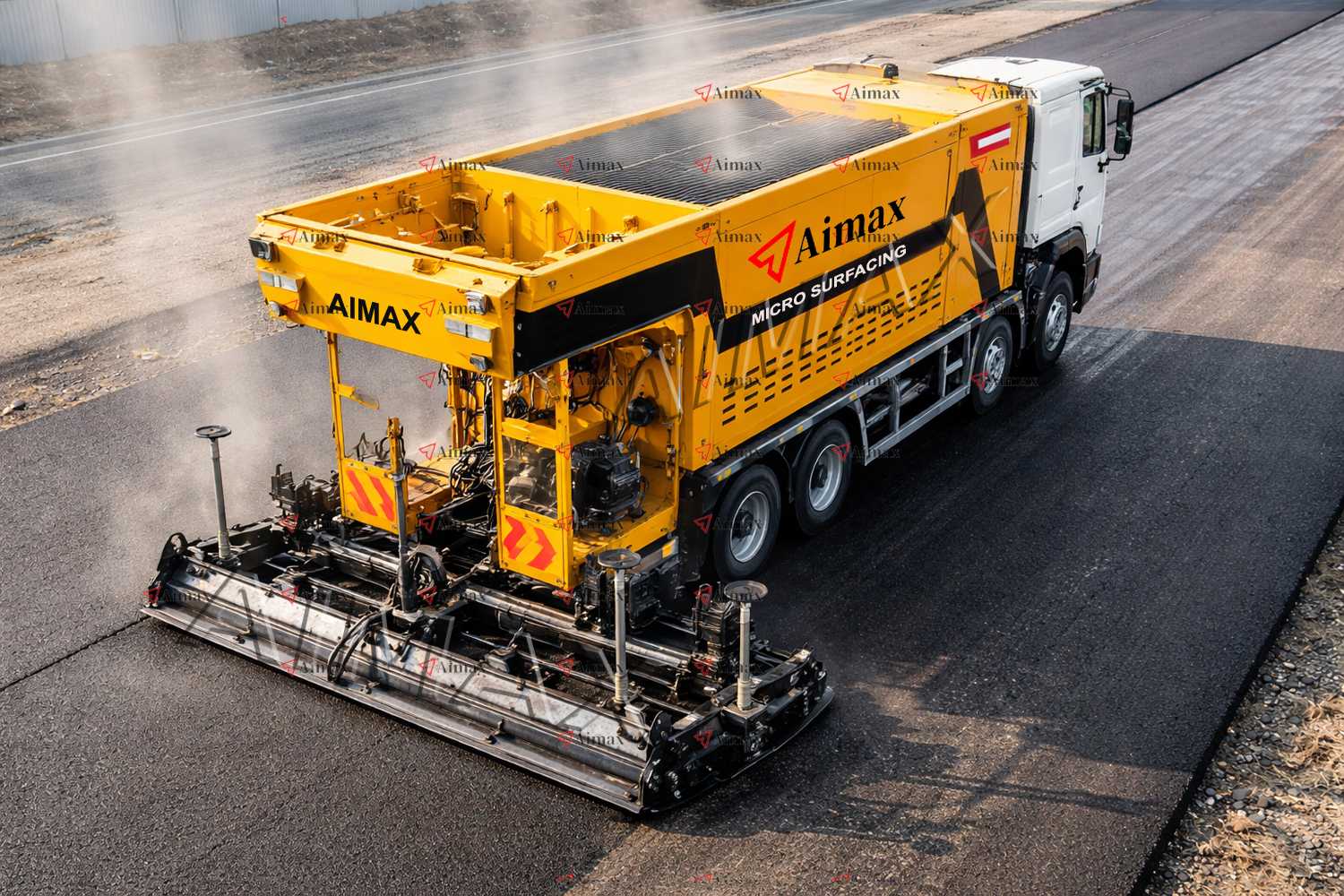

The machine carries all required materials in separate compartments. During operation, the automated system feeds materials into the mixer in precise proportions. The mixture is continuously blended in a twin-shaft pug mill and then discharged through a spreader box onto the road surface.
This process creates a uniform, high-friction, and durable surface layer that improves road life and performance.
Applications
- Highway and expressway maintenance
- Urban road resurfacing
- Airport runway maintenance
- Preventive maintenance programs
- Crack sealing and surface rejuvenation
Advantages
- Extends pavement life without full reconstruction
- Quick application with minimal traffic disruption
- Cost-effective compared to overlay methods
- Improves skid resistance and road safety
- Ideal for both small patchwork and long stretches
Optional Features
- Spray Bar System for tack coat application
- Fiber Dosing System for reinforced micro surfacing
- Custom mounting (Truck / Trailer / Trolley)
- Extended width spreader box

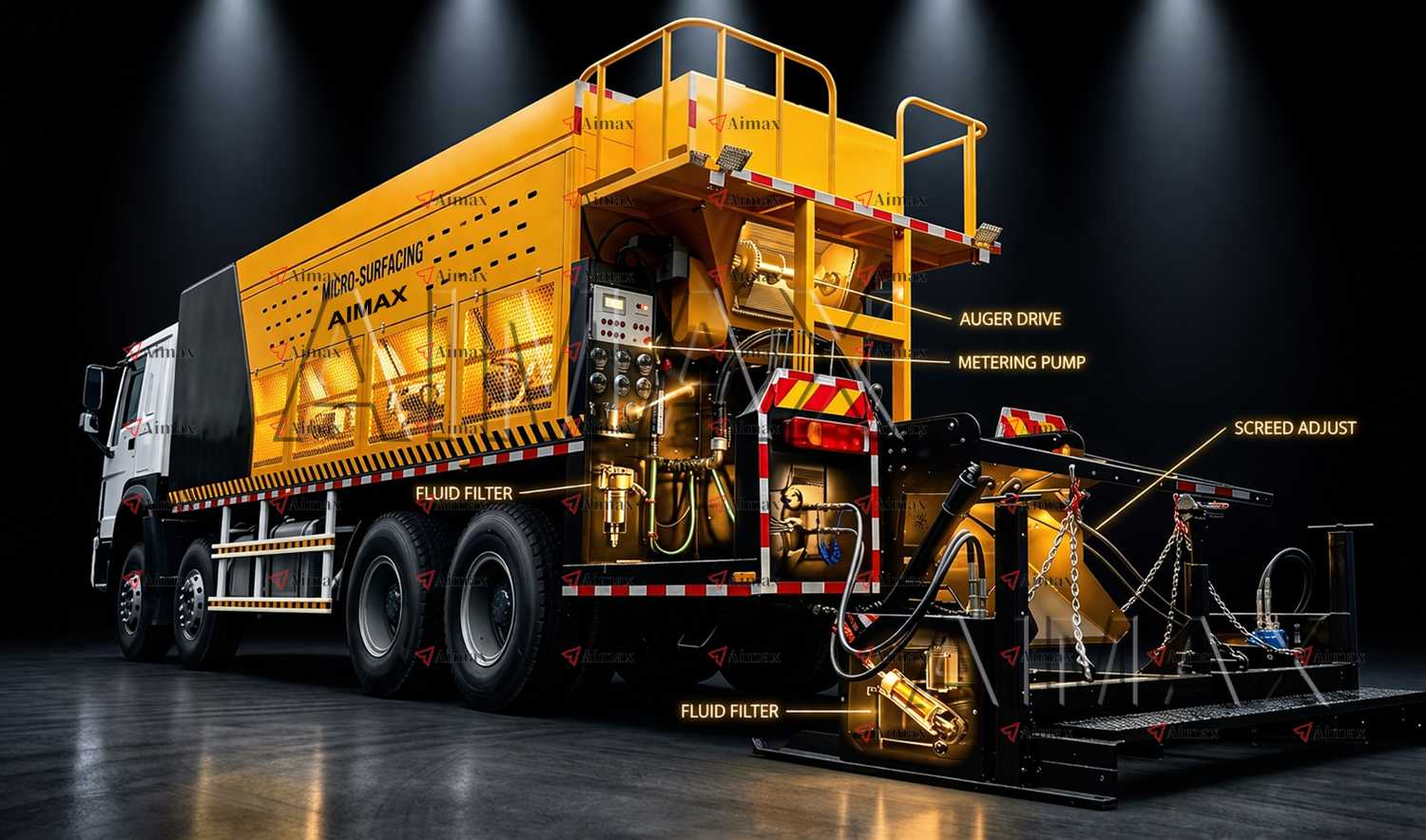

Key Features
- Automated Material Proportioning System – Ensures accurate mixing of aggregate, emulsion, water, and cement for consistent quality
- High-Efficiency Twin Shaft Pug Mill Mixer – Uniform and continuous mixing for smooth surface finish
- Hydraulic Drive System – Reliable, smooth operation for travel and material handling
- Adjustable Spreader Box – Flexible paving width for different road conditions
- Multiple Tank Storage System – Separate tanks for emulsion, water, cement, and additives
- Operator-Friendly Controls – Easy handling with better visibility and safety
- Low Maintenance Design – Durable components with easy service access
Specification
Parameter Classic 5000 (5m³) Ultra 8000 (8m³) Ultra 10000 (10m³) Ultra 12000 (12m³)
Aggregate Capacity 5 m³ 8 m³ 10 m³ 12 m³
Emulsion Tank 2000 L 3000 L 4000 L 5000 L
Water Tank 2000 L 3000 L 4000 L 5000 L
Cement Hopper 150 Kg 200 Kg 250 Kg 300 Kg
Additive Tank 100 L 150 L 200 L 250 L
Mixing System Twin Shaft Pug Mill Twin Shaft Pug Mill Twin Shaft Pug Mill Twin Shaft Pug Mill
Engine Power 76 HP Diesel 100 HP Diesel 120 HP Diesel 140 HP Diesel
Laying Width Up to 3.5 m Up to 4.0 m Up to 4.5 m Up to 5.0 m
Laying Thickness 5–10 mm 5–12 mm 5–12 mm 5–15 mm
Control System PLC Based PLC Based PLC Based PLC Based
Mounting Type Trolley / Truck Trailer / Truck Trailer / Truck Trailer / Truck
Standard Config
- Aggregate storage hopper with vibrator
- Bitumen emulsion tank with pump system
- Water tank with controlled flow system
- Cement feeding system
- Additive tank with dosing unit
- Twin shaft pug mill mixer
- Hydraulic system for drive and operations
- Adjustable spreader box
- Operator control panel
- Standard tool kit
Features
✔ Precision Material Control
PLC-based system ensures exact mix ratio, reducing material waste and improving quality.
✔ Continuous Mixing Technology
Twin shaft mixer provides uninterrupted and uniform output for consistent road finish.
✔ Flexible Mounting Options
Available in trolley, truck-mounted, and trailer-mounted configurations to suit project needs.
✔ High Productivity
Capable of covering large areas quickly, reducing project timelines.
✔ Designed for Real Site Conditions
Handles uneven roads, urban streets, and highways efficiently.
FAQ
Micro surfacing uses polymer-modified emulsion and allows faster curing and better performance. For city roads, 5 m³ is suitable. For highways and large projects, 8–12 m³ models are recommended. Yes, all models are available in truck-mounted configurations. Depending on model and site conditions, it can cover up to 3000–6000 m² per day. Typically between 5 mm to 15 mm depending on application. Yes, it comes with user-friendly controls and automated systems. Highways, city roads, rural roads, and airport runways. Yes, it significantly reduces long-term road repair costs. Spray bar and fiber dosing system are commonly used options. Usually 4–6 weeks depending on configuration. Yes, complete technical support and spare parts are available. What is the difference between slurry seal and micro surfacing?
Which model should I choose?
Can the machine be truck mounted?
What is the typical output per day?
What is the laying thickness?
Is the machine easy to operate?
What type of roads can it work on?
Does it reduce maintenance cost?
What are optional attachments available?
How long does delivery take?
Do you provide after-sales support?
